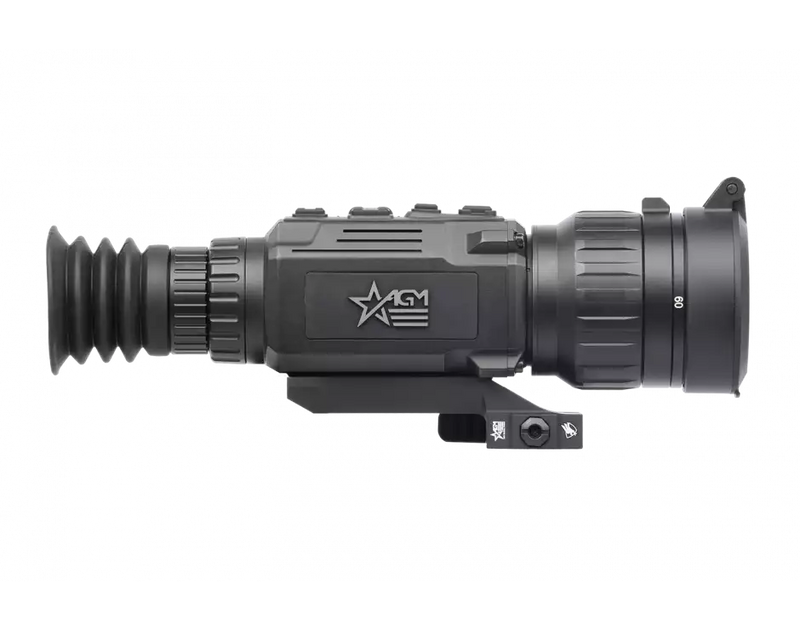

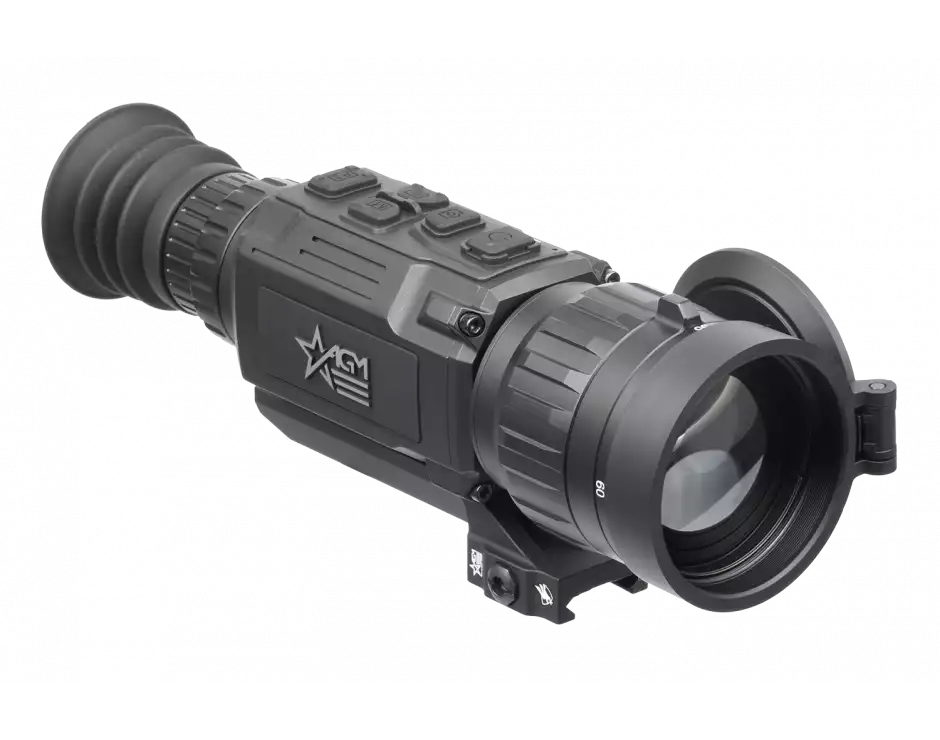

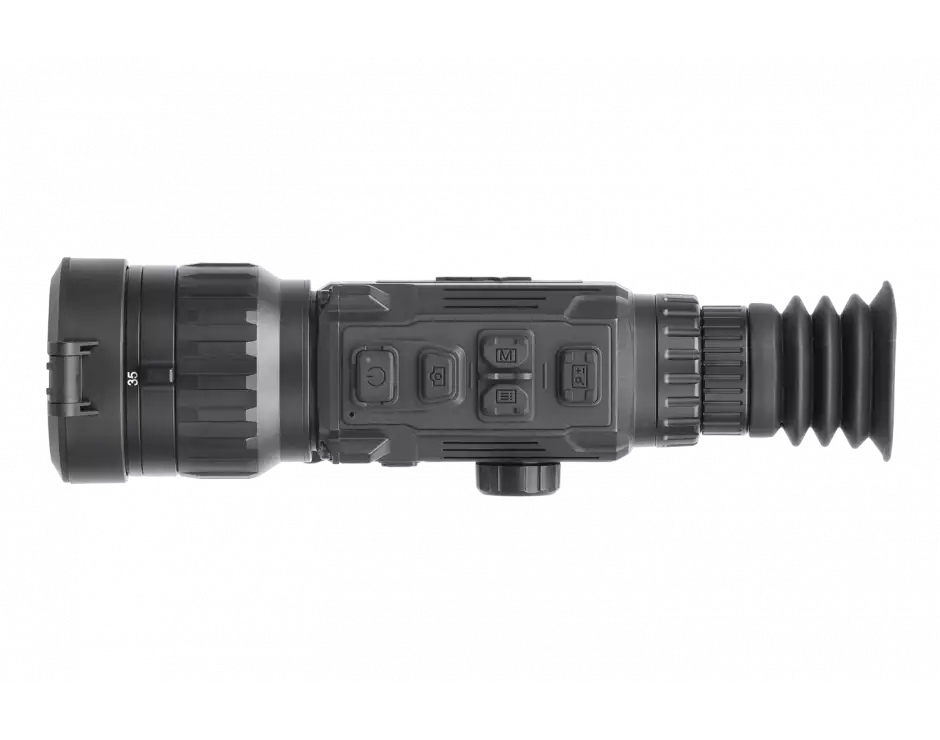

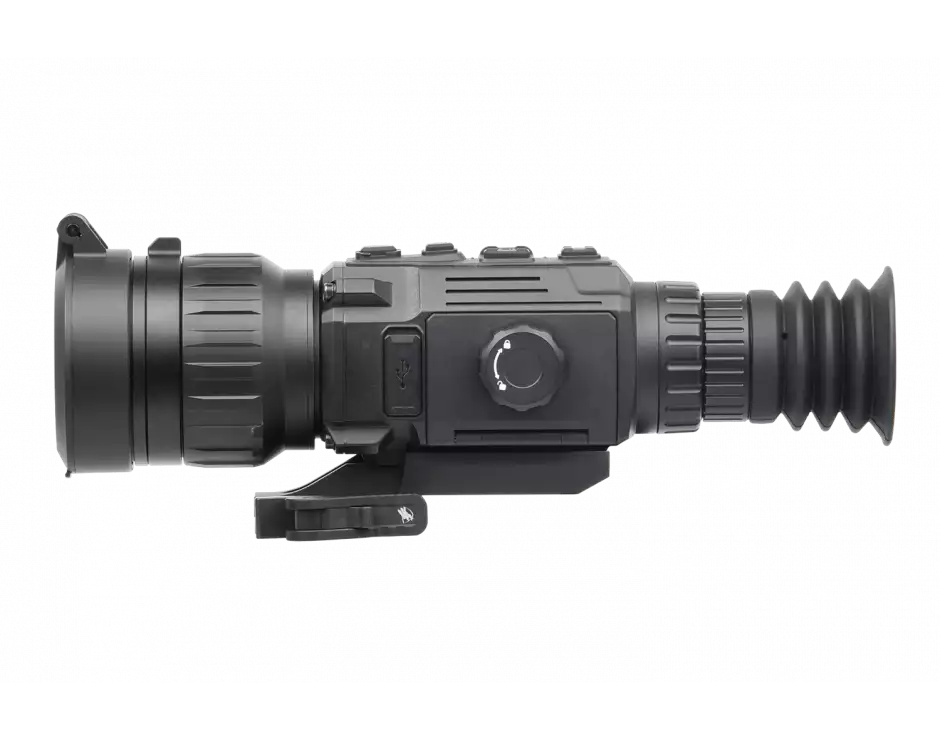

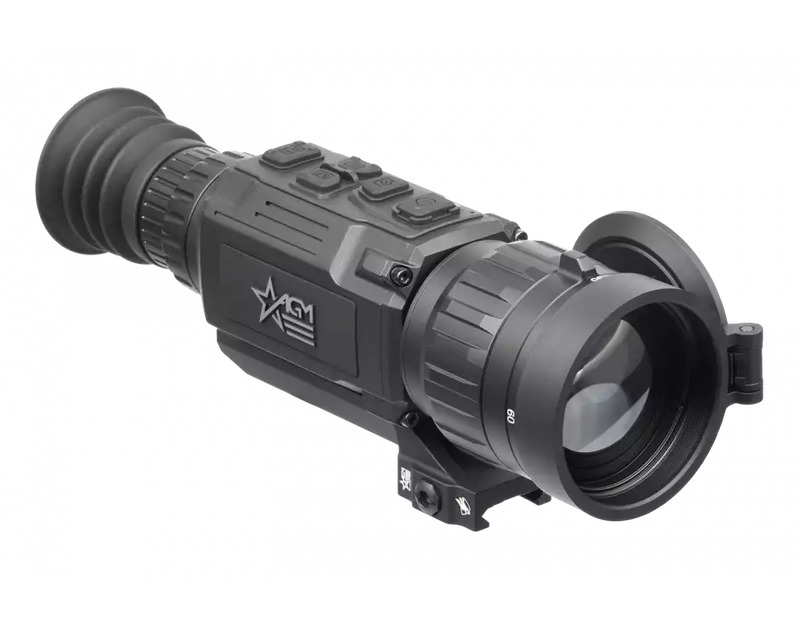

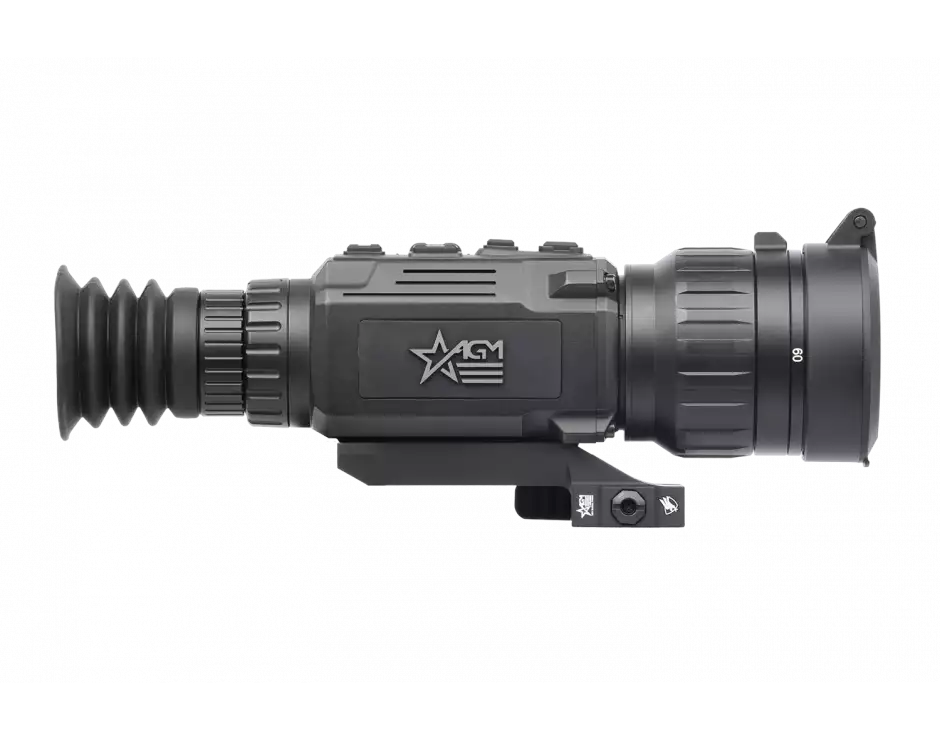

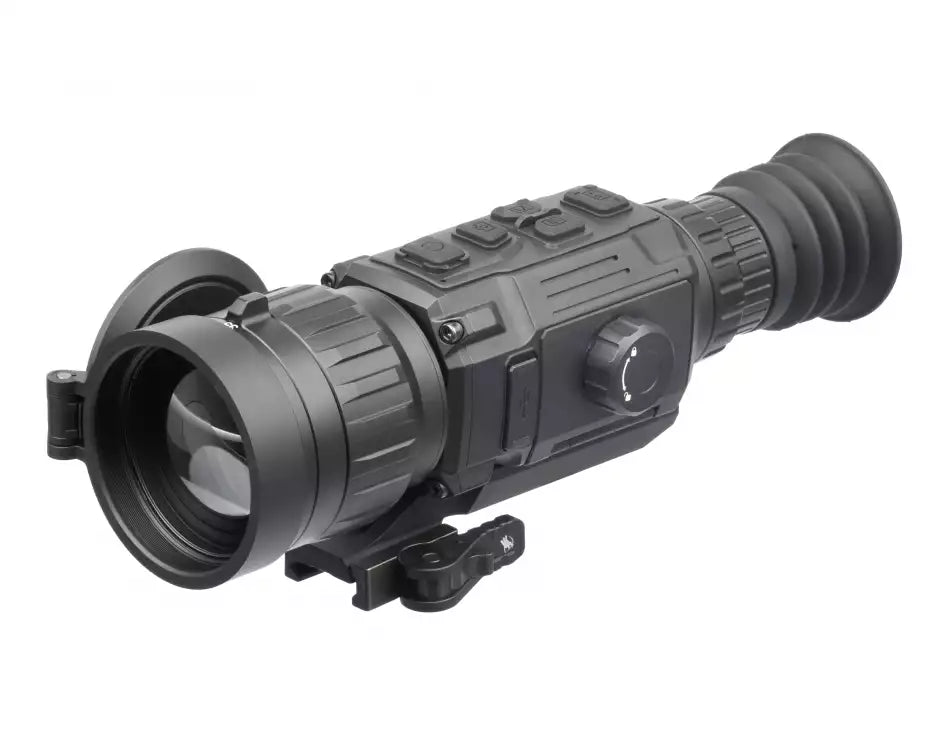

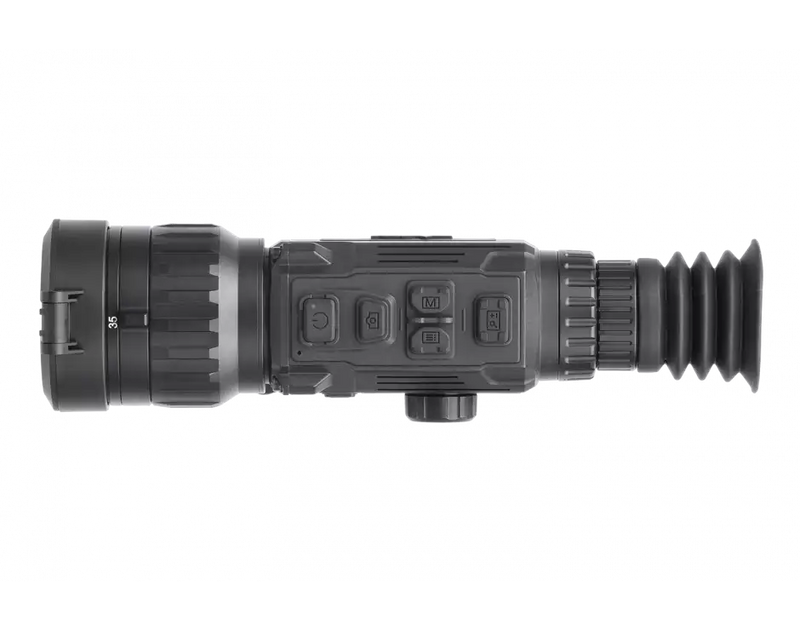

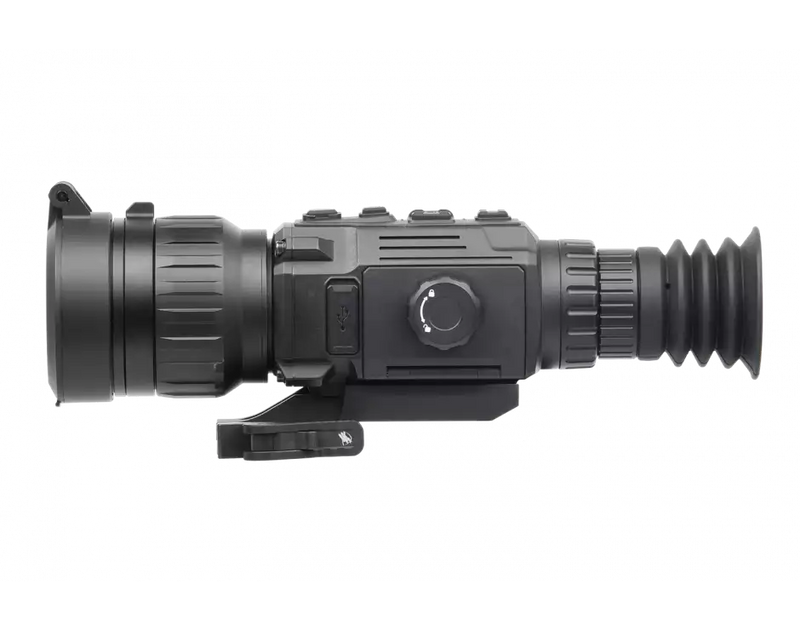

AGM CLARION 640 DESCRIPTION AND FEATURES


The NEW Clarion dual base magnification thermal scope is one of the most technologically advanced thermal scopes in the world. The new Clarion scopes were meticulously designed to solve one of the biggest problems many night hunters face, which is selecting which lens size/sensor configuration will provide the optical base magnification and field of view for each hunter’s primary application. The Clarion alleviates this concern by incorporating a dual-lens optical system that has the ability to mechanically alternate between a 35mm lens or a 60mm lens. This feature alters the base magnification and field of view with no degradation of the image resolution!

With the Clarion 640, Night Hunters can now use the benefits of a 35mm lens with a base magnification of 2x and a wider FOV (12.5° × 10.0° or 65 ft @ 100 yards) then quickly switch to a 60mm lens with a base magnification of 3x and a narrower FOV (7.3° × 5.9° or 38 ft @ 100 yards) to really make sure your positive identification and shot placement is on point!

This dual base magnification flexibility is a new evolution in electro-optics and it will provide hunters with the versatility to optimize their optic for the specific geography and animals which they are hunting whether it be hogs in the eastern fields, or coyotes in the western deserts!

This new design is also paired with the most sensitive thermal sensor temperature rating in its class, coming it at a mind-bending sub-20 milikelvin.

Although the Clarion implements an advanced new optical system, they didn’t cut any corners with any of the design elements that hunters have come to expect from the AGM brand, including: high-quality 640x512 12-micron thermal sensor, removable rechargeable battery, up to 8.5 hours of continuous battery life on a single charge (2 batteries included), 10 internal reticle options, 5 different customizable zeroing profiles, 10 different brightness and contrast settings, wifi hotspot capability, built-in recording w/sound and image capture storage, AGM Connect app compatibility, 4 different reticle colors, 4 color palettes, 5 image sharpness settings and a high-quality American Defense mount which work well with both AR and bolt-action shooting platforms.

Warning: California's Proposition 65

Government Export Restriction:
  • Dual focus objective lens - 35mm/60mm
  • 12μm thermal detector
  • Superior sub-20 milikelvin thermal sensitivity
  • Fast 50Hz imaging
  • High resolution OLED display
  • Adjustable color palettes
  • Various reticle types and colors
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • 8.5 hours battery life (depending on model)
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-year warranty

CHARACTERISTICS OF THE CLARION 640 THERMAL SIGHT

Detector type: 12μm VOx Uncooled Focal Plane Array

Refresh rate: 50 Hz

Resolution: 640 x 512

Base Magnification: 2× - 16× / 3× - 24×

FOV: 12.5° × 10.0° / 7.3° × 5.9°

CLARION 640 PACKAGE INCLUDES

  • Mount
  • Two Rechargeable Batteries
  • Battery Charger
  • USB Cable
  • Lens Cloth
  • Owners Manual
  • Carrying Case

AGM CLARION 640 SPECIFICATIONS


Flat Field Correction (FFC)

Auto, Manual, External Correction

Palettes

Black hot, White hot, Red hot, Fusion

Dimensions

254 × 80 × 68 mm (10.0 × 3.1 × 2.7 in)

Exit Pupil Diameter

6 mm

Reticle

10 types, 4 colors, on/off

Boresight Adjustment

Digital Controlled

Distance Measurement

Yes (Stadiametric)

Scene Mode

Cold, Warm

Picture In Picture Mode (PIP)

Yes

Hotspot

Yes

Video Recording

Yes

Audio Recording

Yes

Magnification

2× - 16× / 3× - 24×

Detector type

12μm VOx Uncooled Focal Plane Array

Standby Mode

Yes

Refresh rate

50 Hz

Resolution

640 × 512

Detection Range (6' object)

1800 m/yd / 3000 m/yd

Lens system

35 mm; F0.9 / 60 mm; F1.1

NETD

Less than 20 mK (25°C, F# = 1.0)

Field of view (H × X)

12.5° × 10.0° / 7.3° × 5.9°

Digital zoom

1×, 2×, 4×, 8×

Diopter adjustment range

-5 to +5 diopters

Focusing range

7 m to infinity / 10 m to infinity

Hot Track

Yes

Eye relief

45 mm

Display

0.39-inch, OLED, 1024×768

Storage

Built-in EMMC (16 GB)

Capture Snapshot

Yes

Battery Type

Replaceable and Rechargeable Li-ion Battery

Battery Life (Operating)

≥ 8.5 h (25°C, hotspot off)

External power supply

5 VDC, 2 A, USB Type-C

Operating Temperature Range

-30°C to +55°C (-22°F to 131°F)

Weight

0.84 kg (1.85 lb)

Protection Level

IP67
